Fully automatic sandblasting cabin SB Automatic with external dust extraction

Description

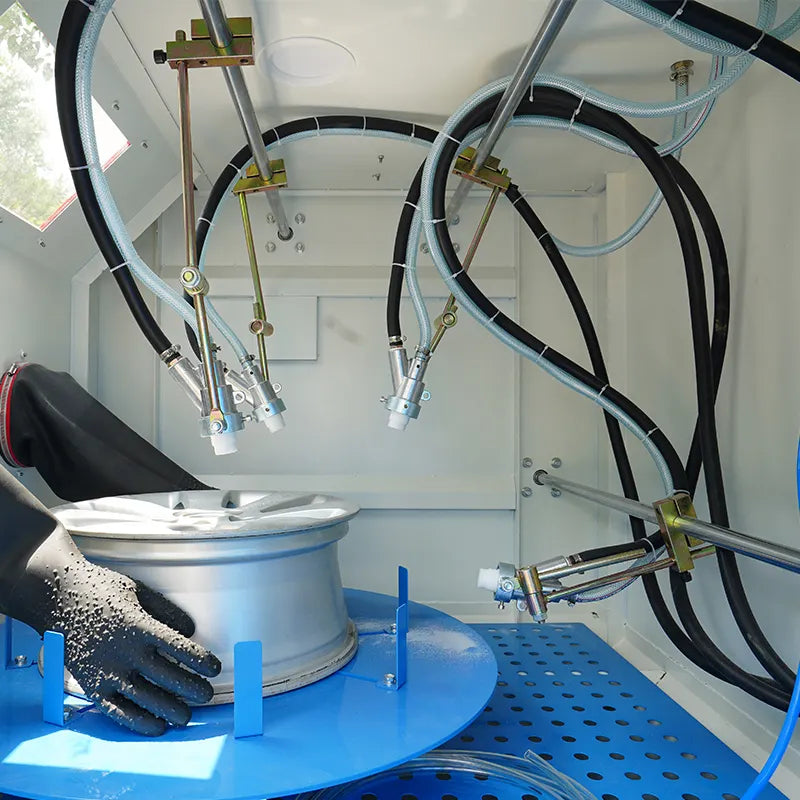

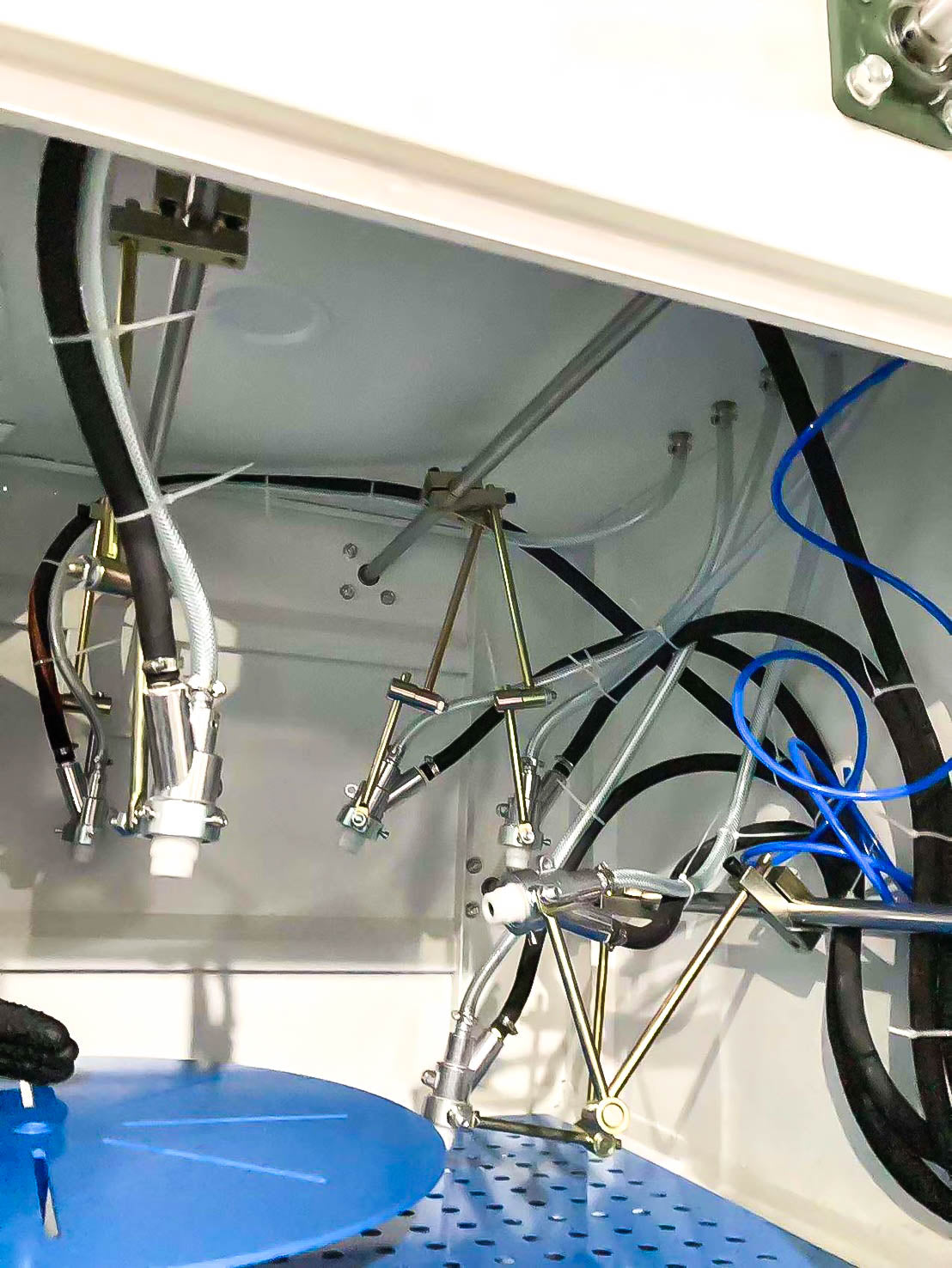

With the fully automatic sandblasting cabin "SB Automatic" incl. external dust extraction from rim professor, the effectiveness as well as the time and cost savings are raised to a whole new level. Equipped with 6 boron carbide blasting nozzles and a rotating turntable (360°), sandblasting succeeds within a very short time and with very little work. Let the machine work for you and get busy with more important activities!

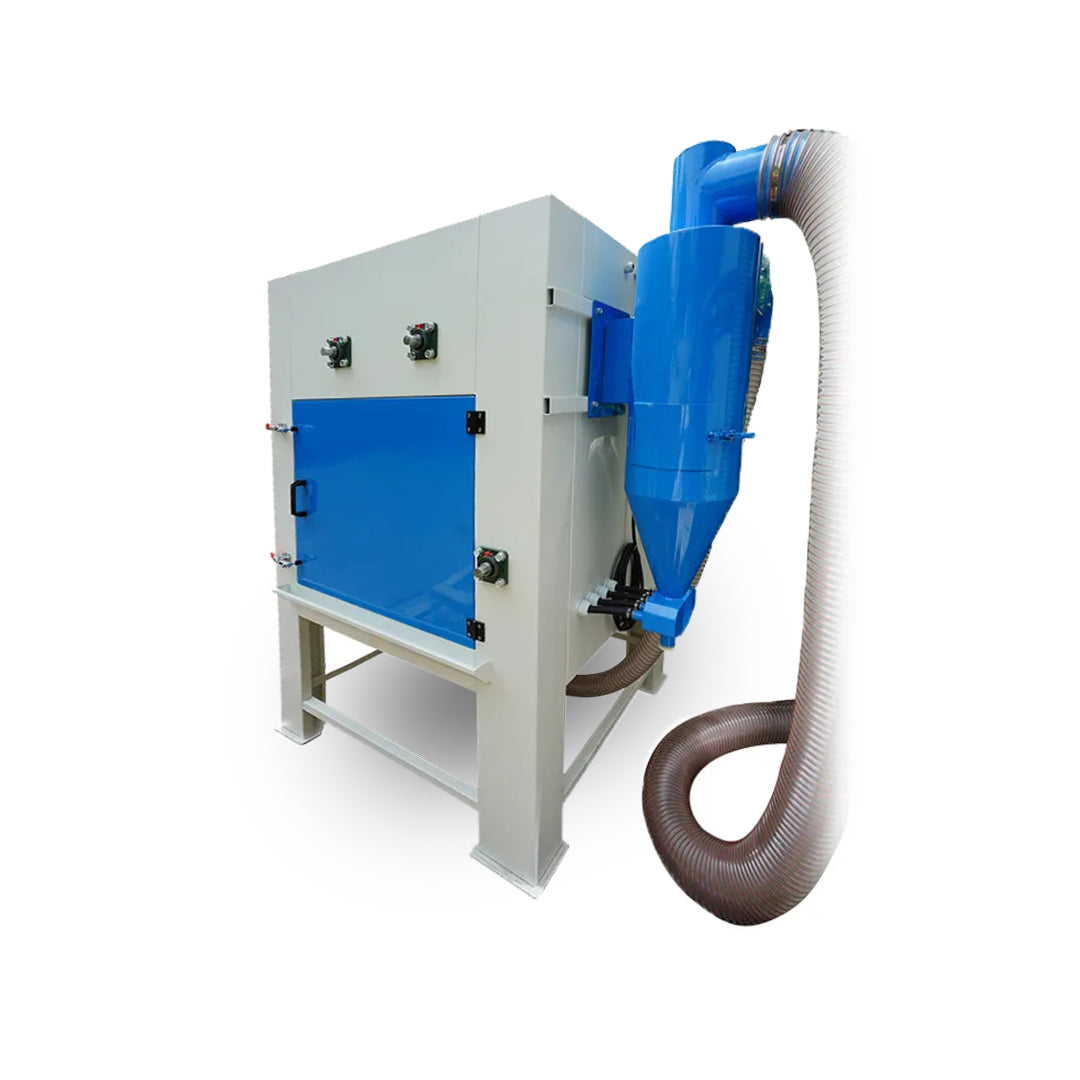

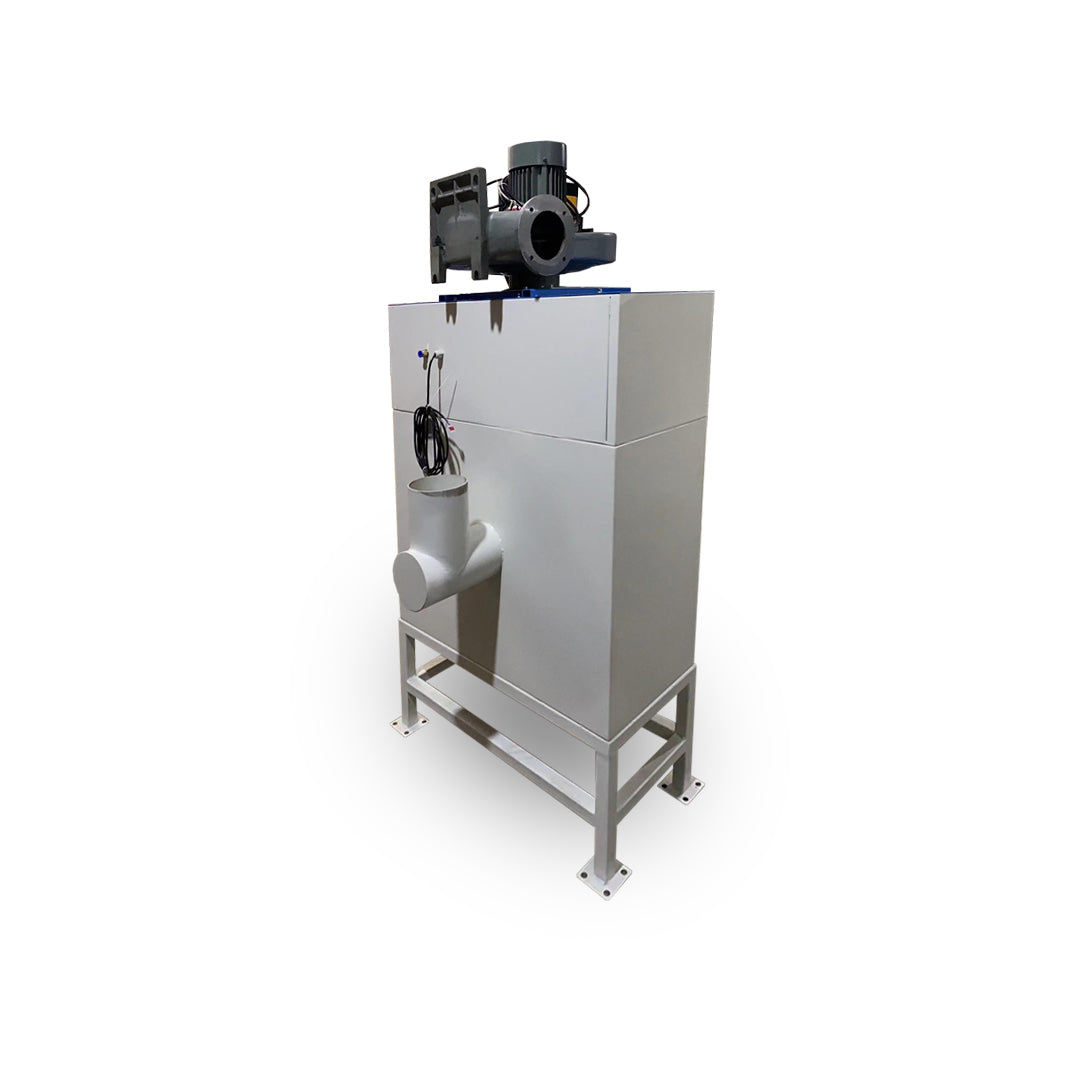

So that the reusable particles are not lost, our blasting cabin has a cyclone extractor for pre-filtering and an external dust extraction for final air treatment in breathable air quality. The fine dust particles are thus separated from the other blasting particles and filtered out in the external dust extraction (see figure).

The automatic blasting cabinet was developed for efficient use and meets the highest quality standards in terms of durability and workmanship.

The number 1 among the pressure blasting cabins for professional sandblasting - ideal for long-term use for materials such as e.g. e.g. aluminium, steel, cast iron, stainless steel etc.

Experience a new dimension of sandblasting!

This system easily outshines manual cabs and is therefore unrivaled in the 1200x1200x800mm cab range.

The fully automatic sandblasting cabin "SB Automatic" including external dust extraction - from the professor for professionals!

service

We offer our customers energy-efficient products and system solutions as well as delivery, service, maintenance and spare parts supply. Visit the machine on site in our exhibition!

Our product specialists can create any configuration for your projects with any of our systems.

Contact us today for an offer!

financing

Do you need help financing the product? For all our machines and systems, we offer you the option of financing them by hire purchase or leasing at interesting conditions with or without a down payment. Please contact us!

Shipment

If the product is in stock, you have the choice of picking it up yourself or having it delivered for a fee.

If the product is not in stock, it will be made to order at the factory and shipped directly to you. Alternatively, the product can be delivered to our warehouse for collection. Fast production time of 4-8 weeks.

The machines are usually dispatched by a forwarding company. The costs for this are not included in the purchase price! We choose the best shipping service provider at the time of purchase and tell you the costs. You are also welcome to ask us about the current shipping costs before you buy, which we will inform you of in a binding manner.

Technical specifications

Number of jet nozzles: 6 pieces
Type of nozzles: Borcabid jet nozzles
Mains voltage: 380 V / 50 Hz
Power consumption (full load): 1.4 KW
Lighting: 2x 18W safety lamps
Compressed air supply: dry compressed air with up to 5-8 bar
Turntable (diagonal): 700 mm
Size: 1200*1200*800mm
Weight: 300kg

Customer-side errands for operational readiness

1. Run the 380V electric wire to the control panel and ground the machine.
2. Installation and, if necessary, connection of compressed air lines.
3. Continuous dry air supply of 8 bar 2 m³/h for the blasting system.
4. Provision of the necessary blasting granules for the sandblasting process.
